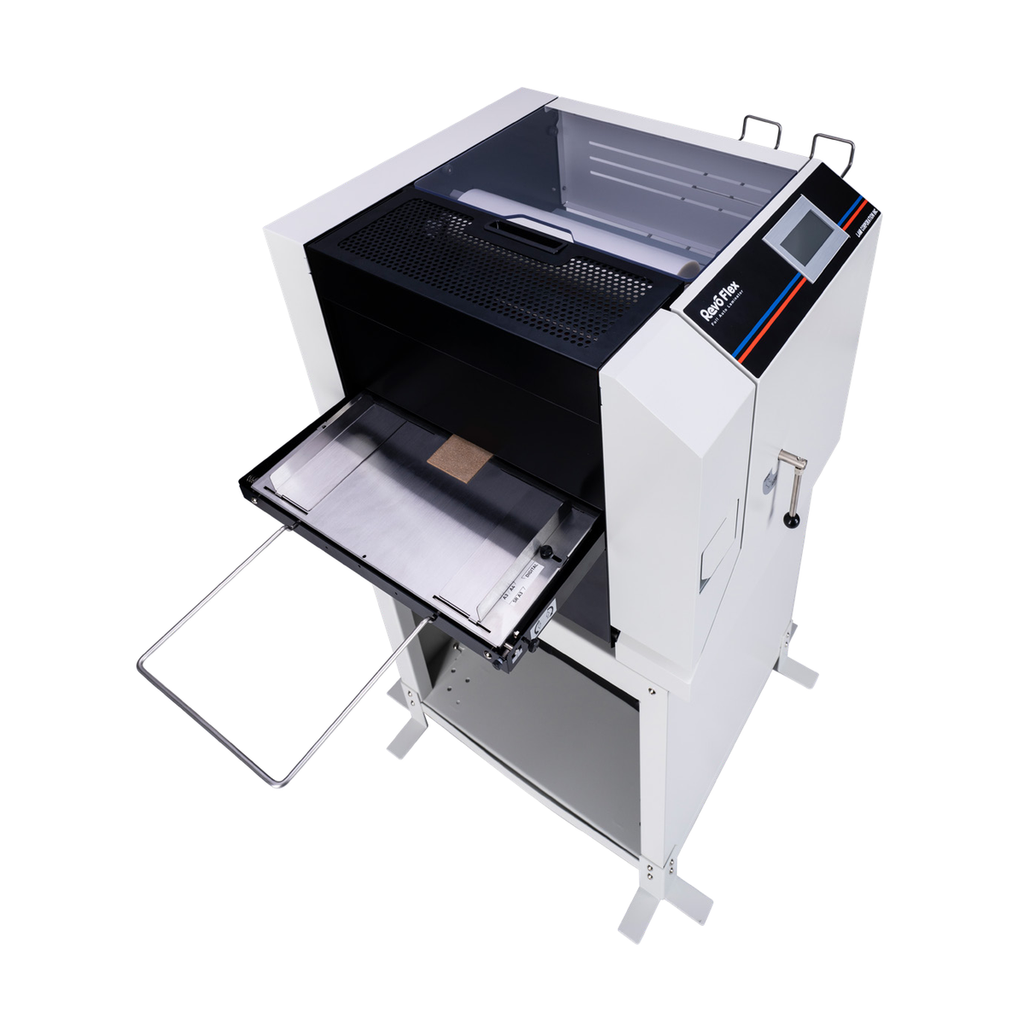

Revo Flex — 4-Side Trim Fully Automatic Laminator
Revo Flex — 4-Side Trim Fully Automatic Laminator
The Revo Flex is the next generation of automatic lamination. Feeding, laminating, cutting and trimming all four sides happen in one pass, from a single press of the start button — no second machine, no separate trimming step, no operator standing by.

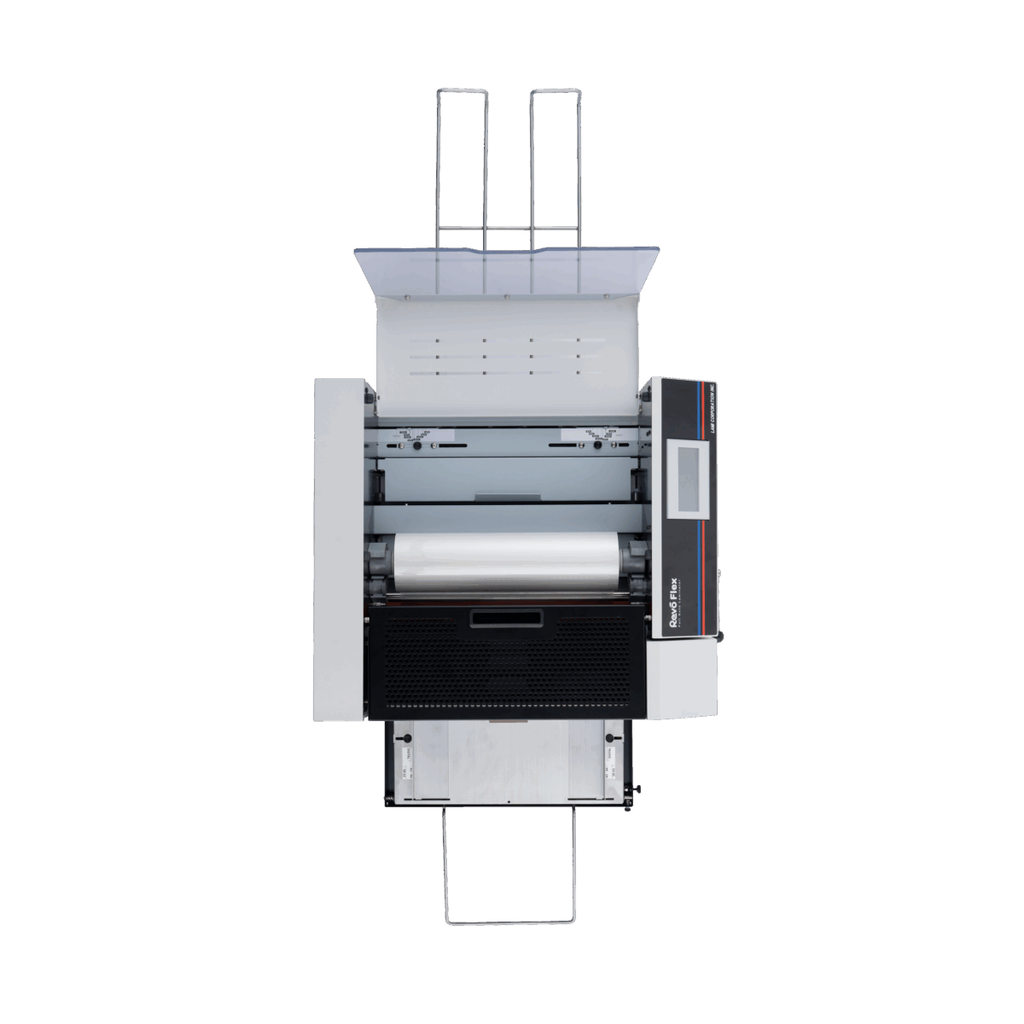

The trim positions are fully adjustable, so you can produce a true flush cut or leave a deliberate encapsulation border, with or without margin. A no-waste run mode eliminates sheet trim entirely when you do not need it. Adjustable speed and resist roller pressure let it hold quality across a wide range of paper weights and film thicknesses, and the touch panel keeps the adjustments in one place.
Specifications
- Max sheet width: 13"
- Max film width: 12.6"
- Speed: up to 420 sheets/hour (27.5–78 inches per minute, adjustable)
- Feeder capacity: 200 sheets
- Film thickness: 1.5–10 mil
- Trimming: internal 4-side, with or without margin
- Power: 110v
- Shipping dimensions: 51" x 24" x 42.5"
- Weight: 154 lbs (ships LTL)
Good to know

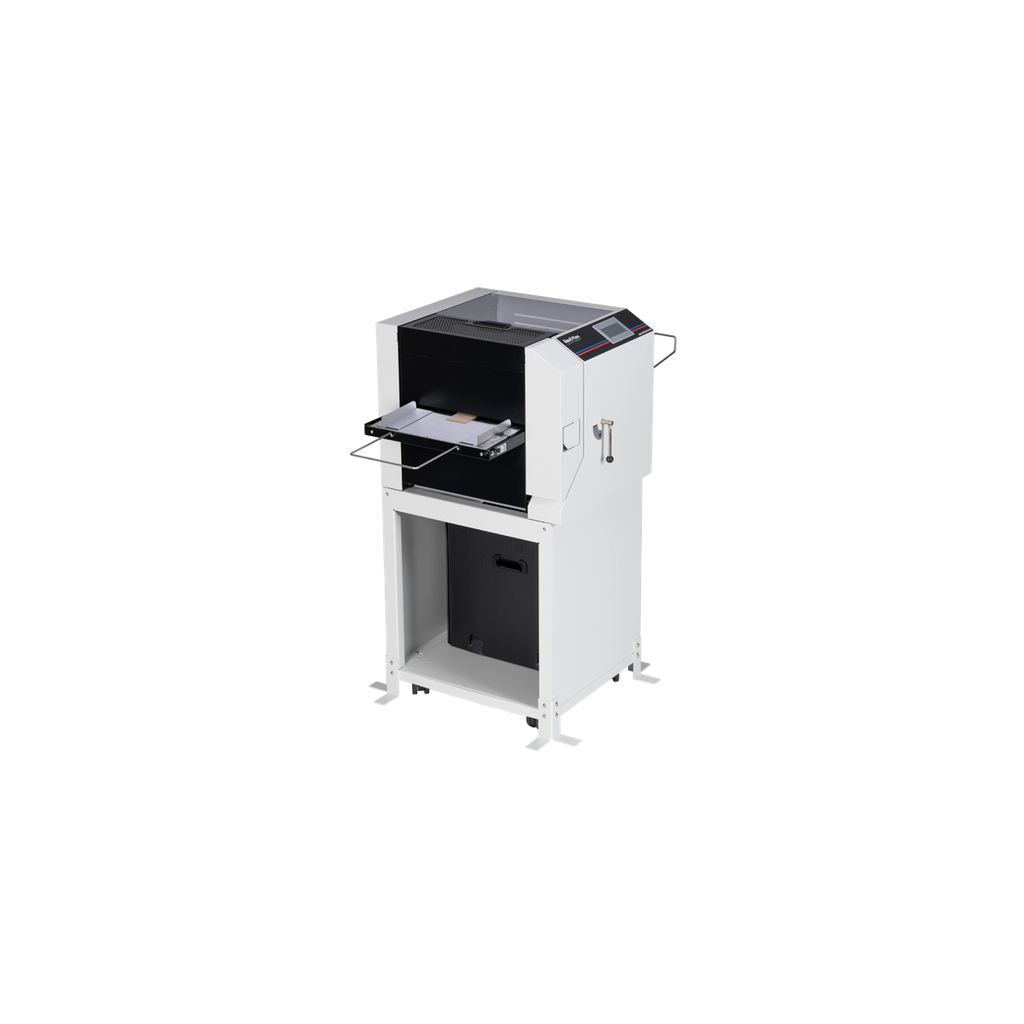

Stand is included. Film is not — the Revo Flex uses Lami Corporation film only, in 12.6" width. See Revo Flex Lamination Film for compatible rolls.
Film & Compatibility
Revo laminators run genuine Lami Corporation film only. Third-party film will not track correctly through the cassette and feed system, and using it will affect your warranty.
Film is sold by the box — four rolls per box on the Revo Any, Office and T14, and two rolls per box on the Revo Flex. Each machine has its own film page listing the widths, thicknesses and footage available.
Shipping & Support
Shipping is free on every order, shipped same day from our US warehouse where stock allows.
Laminators ship LTL freight on a pallet and need a signature on delivery. Film, cassettes, mandrels and stands ship UPS.
Every account gets a named contact rather than a support queue. If you are not sure which machine or which film thickness suits your volume, get in touch before you order and we will work it out with you.
