Revo T14 — High-Volume Automatic Encapsulation Laminator
Revo T14 — High-Volume Automatic Encapsulation Laminator

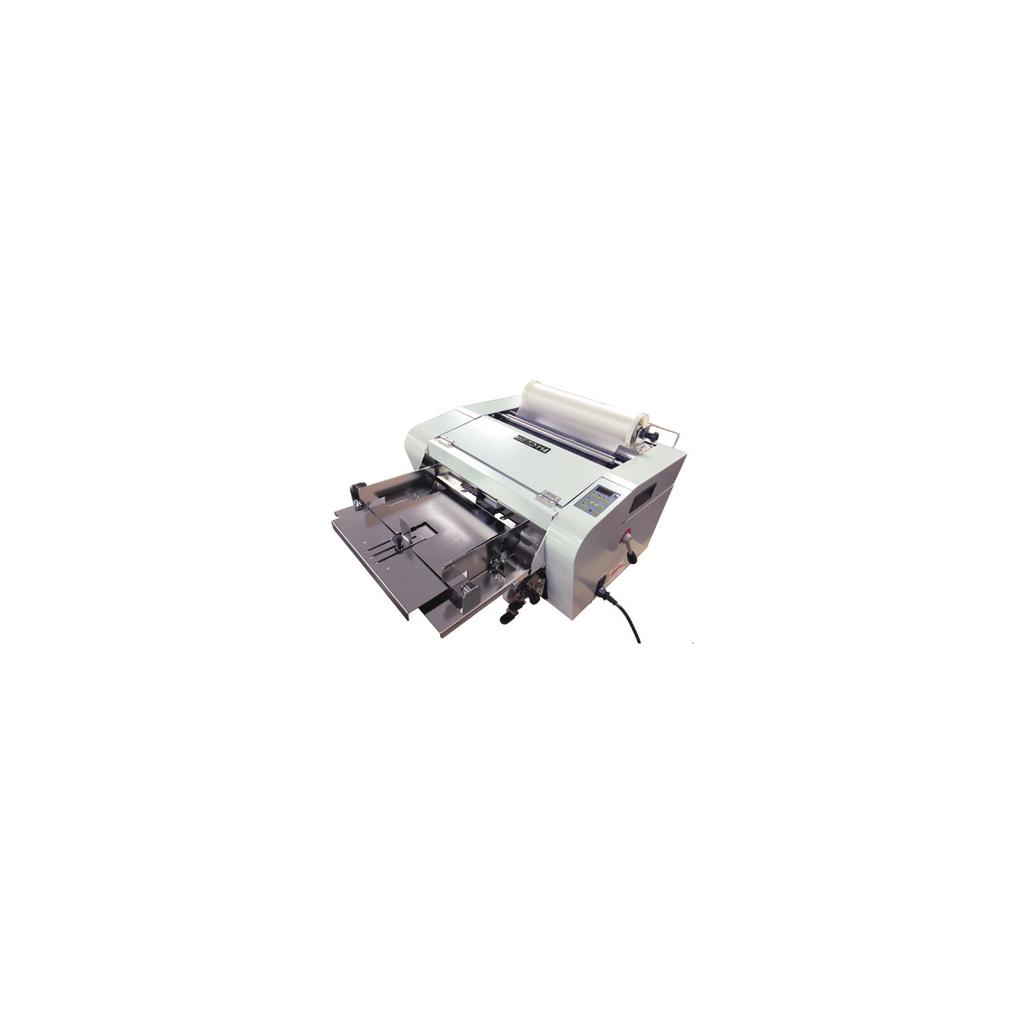

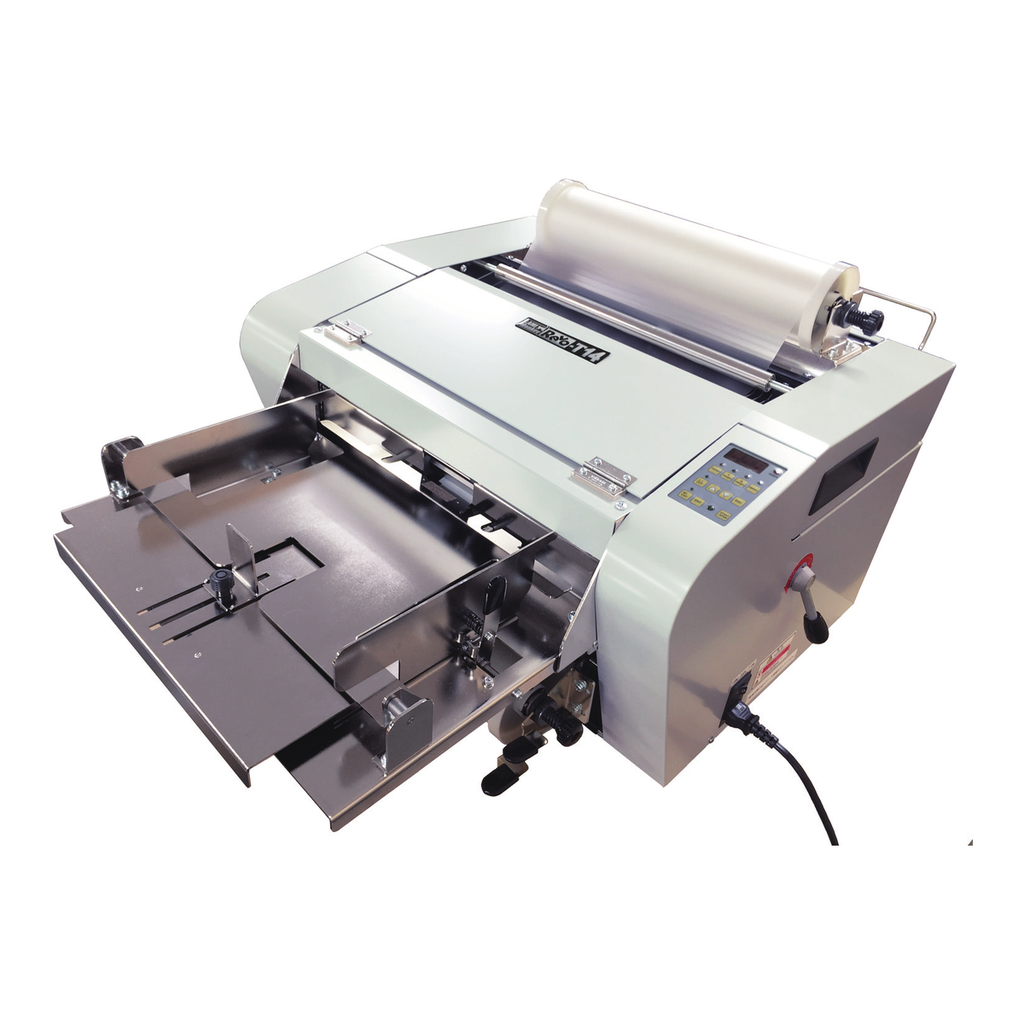

The Revo T14 is a fully automatic encapsulation laminator built for volume. Load up to 300 sheets, press start, and it feeds, laminates and cuts unattended at 425 sheets per hour on letter stock.

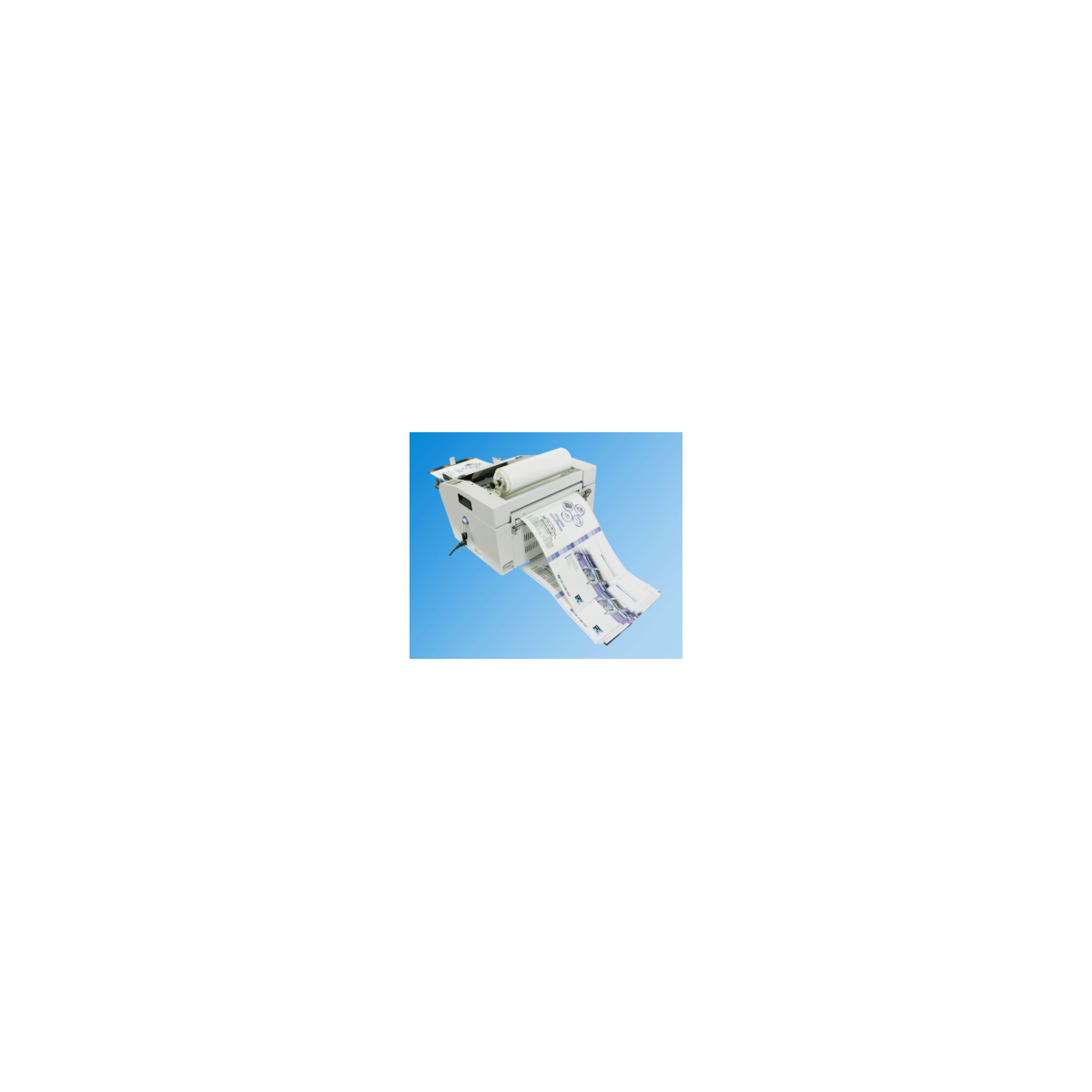

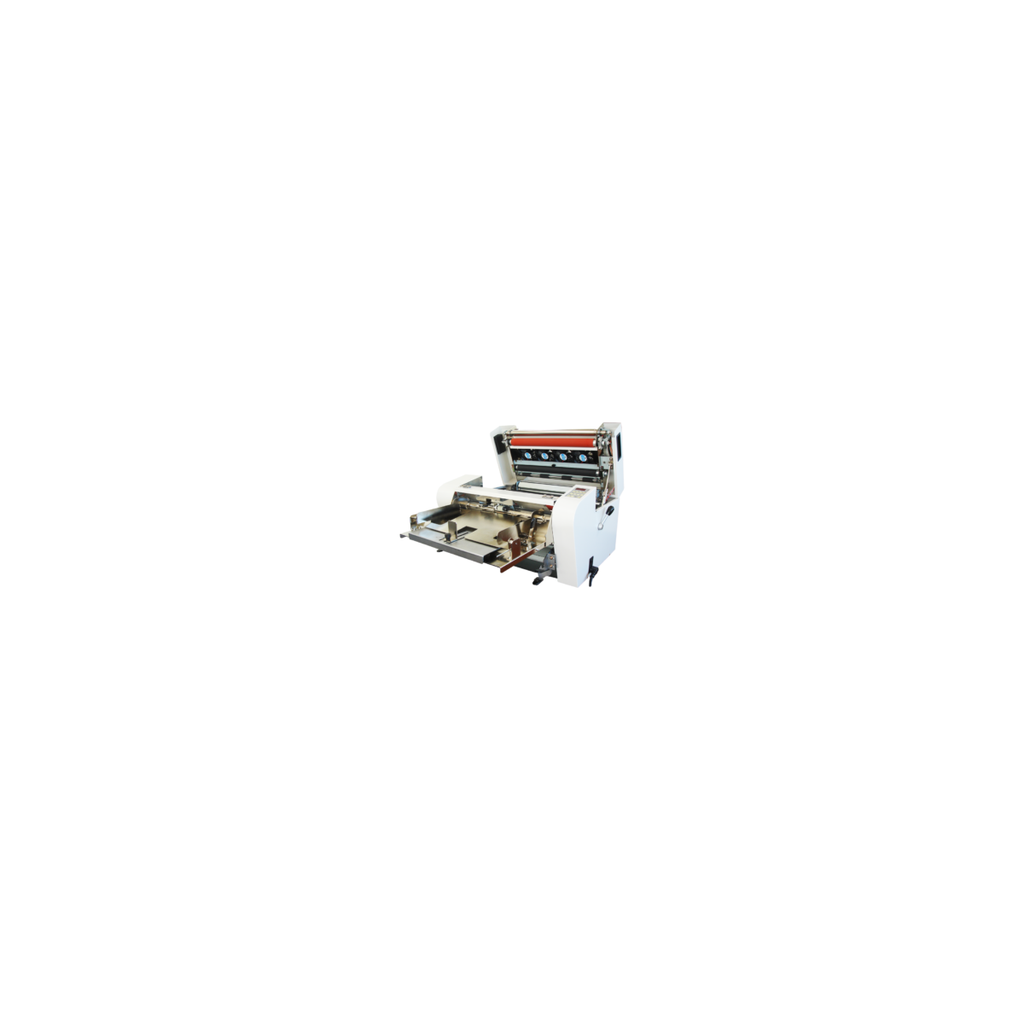

A six-roller system — four heated, two steel — holds quality consistent across thin and thick paper alike, and two cooling fans keep encapsulation clear rather than cloudy. Warm-up is five minutes. Because it runs roll film rather than pouches, it will also produce a continuous length sheet, which makes it the machine of choice for encapsulated banners and oversized custom work.
Specifications
- Max sheet width: 13"
- Max film width: 12.3"
- Speed: up to 425 sheets/hour at 8.5" x 11", 216 sheets/hour at 11" x 17" (63 inches per minute)
- Rollers: six — four heated, two steel
- Film thickness: 2–5 mil
- Temperature: adjustable, digital LCD
- Power: 110v
- Shipping dimensions: 48" x 44" x 36"
- Weight: 205 lbs including stand (ships LTL)
Tip from the shop floor
Run 12" film on 12" x 18" digital stock to gang multiple images on one sheet, then flush-cut trim them apart.
Good to know

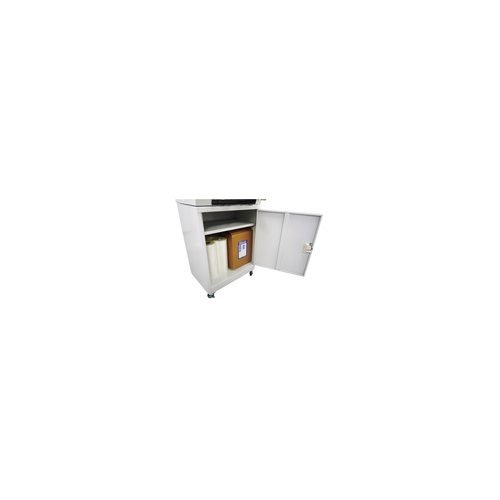

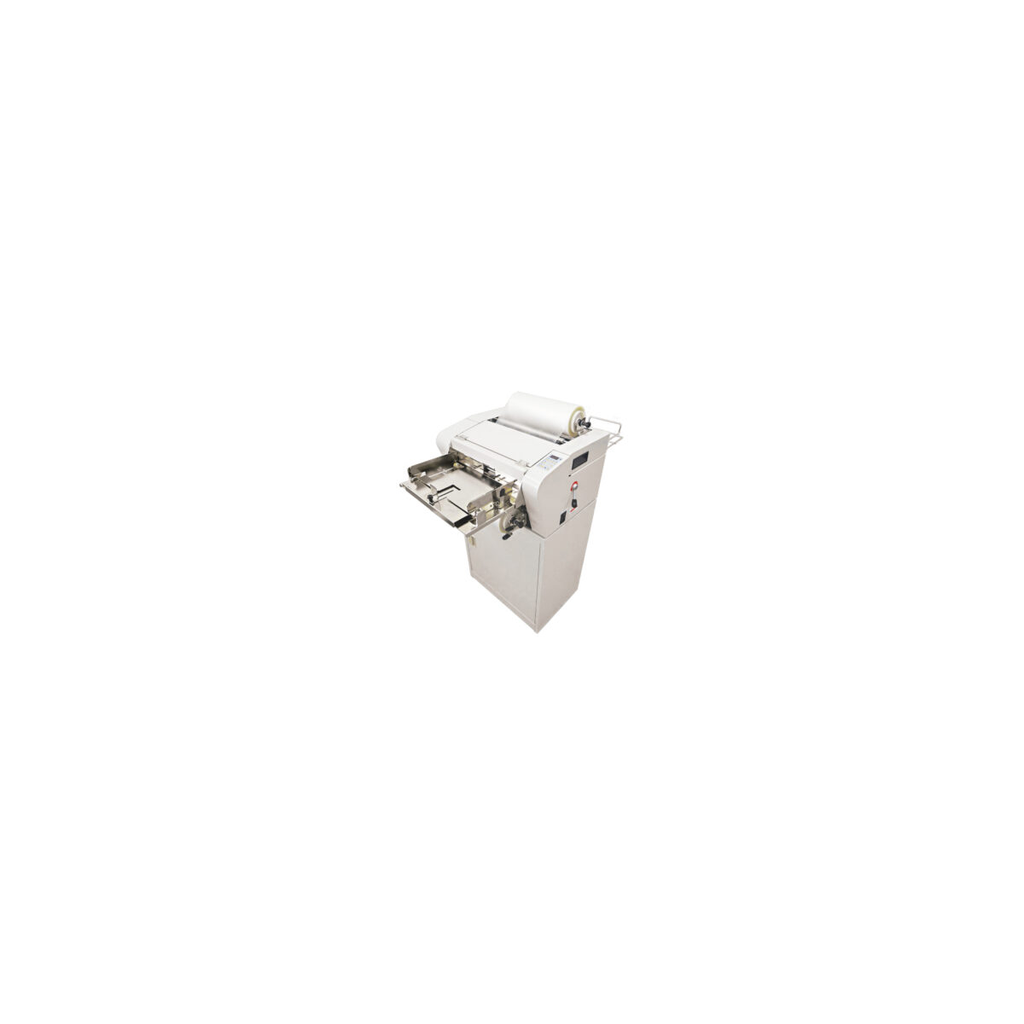

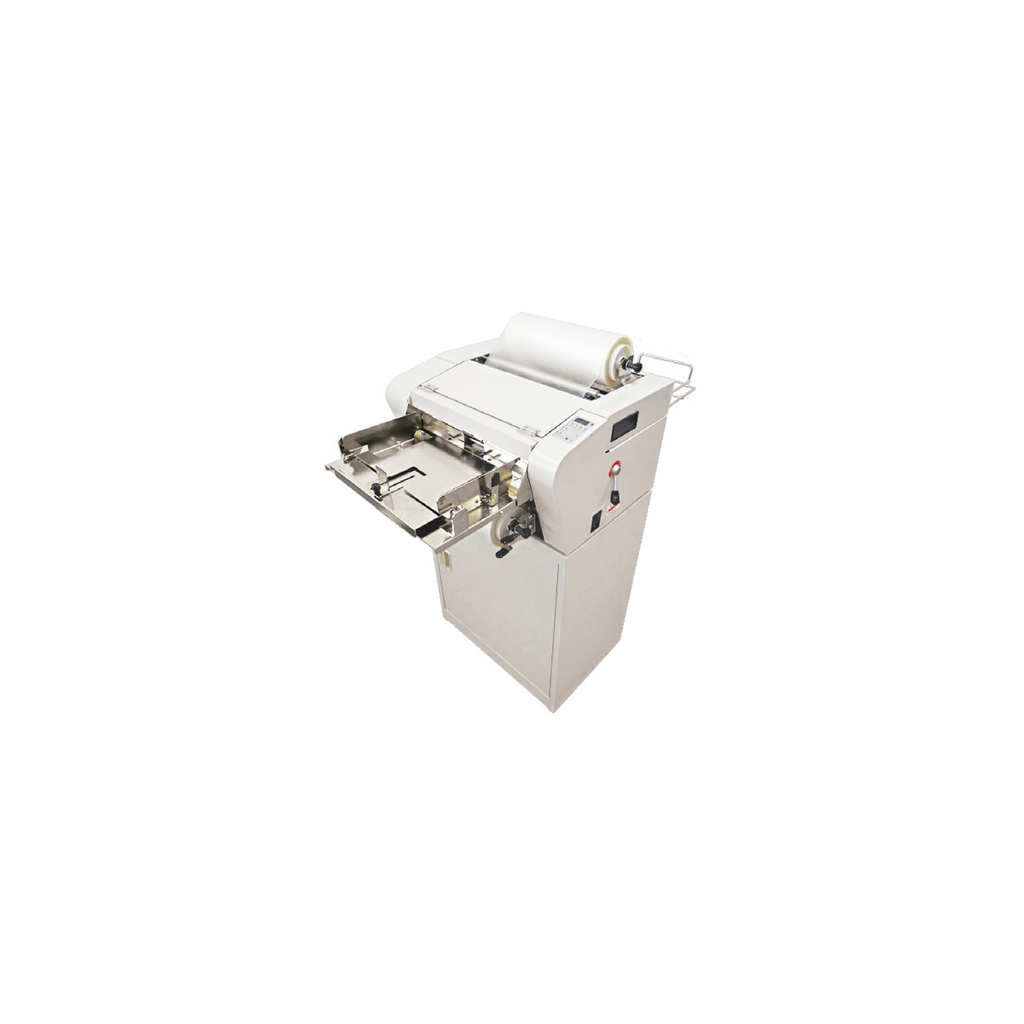

Film is not included. Uses Lami Corporation film only. Optional cabinet/stand and spare roll mandrels are available separately.
Film & Compatibility
Revo laminators run genuine Lami Corporation film only. Third-party film will not track correctly through the cassette and feed system, and using it will affect your warranty.
Film is sold by the box — four rolls per box on the Revo Any, Office and T14, and two rolls per box on the Revo Flex. Each machine has its own film page listing the widths, thicknesses and footage available.
Shipping & Support
Shipping is free on every order, shipped same day from our US warehouse where stock allows.
Laminators ship LTL freight on a pallet and need a signature on delivery. Film, cassettes, mandrels and stands ship UPS.
Every account gets a named contact rather than a support queue. If you are not sure which machine or which film thickness suits your volume, get in touch before you order and we will work it out with you.
